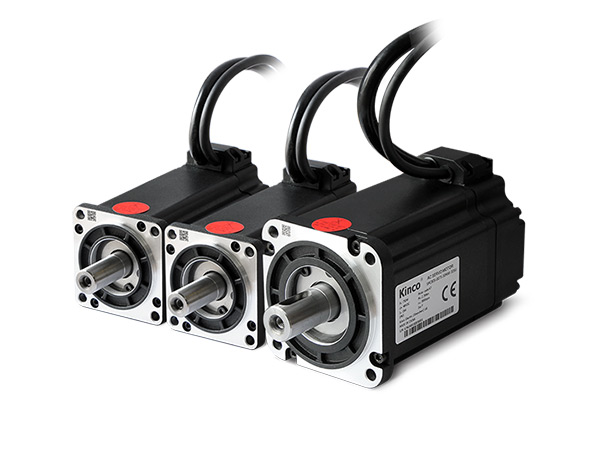

产品简介：
齿槽转矩小、转矩脉动低，电机运行过程中的振动，使转矩输出更加平稳，机身结构重新设计，缩短机身长度，节省更多安装空间、减小设备尺寸低压伺服规格型号：SMS40S/60S/80S（绝对值编码器）、SMC40S/60S/80S(磁电编码器、光电编码器)、 SMH110D、SMC130D（光电编码器）
低压伺服功率范围： 50W~1500W
低压伺服直流母线电压VDC： 48V
■ G2系列伺服电机型号列表（短机身、DC48V）
| G2系列 | 规格型号 | 额定功率 Pn（W) | 额定转矩 Tn(Nm) | 额定转速 Nn(rpm) | 额定电流 In(A) | 轴径 （mm) | 机身长度(mm) ±1.5mm | |
| □=A | □=B（抱闸电机） | |||||||
| 磁电 编码器 | SMC40S-0005-30M□K-5DSU | 50 | 0.16 | 3000 | 1.5 | 8 | 74.6 | 104.6 |
| SMC40S-0010-30M□K-5DSU | 100 | 0.32 | 3.2 | 96.6 | 126.6 | |||
| SMC60S-0020-30M□K-5DSU | 200 | 0.64 | 5.7 | 14 | 75.5 | 112.5 | ||
| SMC60S-0040-30M□K-5DSU | 400 | 1.27 | 10.6 | 97 | 134.5 | |||
| SMC60S-0060-30M□K-5DSU | 600 | 1.91 | 16.5 | 132.5 | 167.5 | |||
| SMC80S-0075-30M□K-5DSU | 750 | 2.39 | 19.9 | 19 | 106.7 | 141 | ||
| SMC80S-0100-30M□K-5DSU | 1000 | 3.18 | 26.4 | 122.7 | 157 | |||
| 多圈绝对值 编码器 | SMS40S-0005-30K□K-5DSU | 50 | 0.16 | 1.5 | 8 | 74.6 | 104.6 | |
| SMS40S-0010-30K□K-5DSU | 100 | 0.32 | 3.2 | 96.6 | 126.6 | |||
| 光电 编码器 | SMC60S-0020-30A□K-5DSH | 200 | 0.64 | 5.7 | 14 | 86.5 | 122.5 | |
| SMC60S-0040-30A□K-5DSH | 400 | 1.27 | 10.6 | 108.5 | 144 | |||
| SMC60S-0060-30A□K-5DSH | 600 | 1.91 | 16.5 | 144 | 177 | |||
| SMC80S-0075-30A□K-5DSH | 750 | 2.39 | 19.9 | 19 | 118.2 | 150 | ||
| SMC80S-0100-30A□K-5DSH | 1000 | 3.18 | 26.4 | 134 | 166 | |||
■ G1系列伺服电机型号列表（DC48V）
| G1系列 | 规格型号 | 额定功率 Pn(W) | 额定转矩 Tn(Nm) | 额定转速 Nn(rpm) | 额定电流 In(A) | 轴径 （mm) | 机身长度(mm) ±1.5 mm | |
| □=A | □=B（抱闸电机) | |||||||
| 磁电 编码器 | SMC60S-0020-30M□K-3DSU | 200 | 0.64 | 3000 | 5.1 | 14 | 91 | 121 |
| SMC60S-0040-30M□K-3DSU | 400 | 1.27 | 10.1 | 117 | 147 | |||
| SMC80S-0075-30M□K-3DSU | 750 | 2.39 | 19 | 19 | 128.5 | 158 | ||
| 多圈绝对值 编码器 | SMS60S-0020-30K□K-3DSU | 200 | 0.64 | 5.1 | 14 | 91 | 121 | |
| SMS60S-0040-30K□K-3DSU | 400 | 1.27 | 10.1 | 117 | 147 | |||
| SMS80S-0075-30K□K-3DSU | 750 | 2.39 | 19 | 19 | 128.5 | 158 | ||
| 增量式 编码器 | SMC60S-0020-30A□K-3DSH | 200 | 0.64 | 5.1 | 14 | 104 | 150 | |
| SMC60S-0040-30A□K-3DSH | 400 | 1.27 | 10.1 | 130 | 176 | |||
| SMC80S-0075-30A□K-3DSH | 750 | 2.39 | 19 | 19 | 140 | 187 | ||
| SMC130D-0120-30A□K-4DKR | 1200 | 3.8 | 31.6 | 22 | 147 | 163 | ||
| SMC130D-0150-30A□K-4DKR | 1500 | 5 | 37.4 | 208 | 224 | |||
| SMH110D-0120-30A□K-4DKR | 1200 | 4 | 32 | 19 | 168 | 228 | ||
